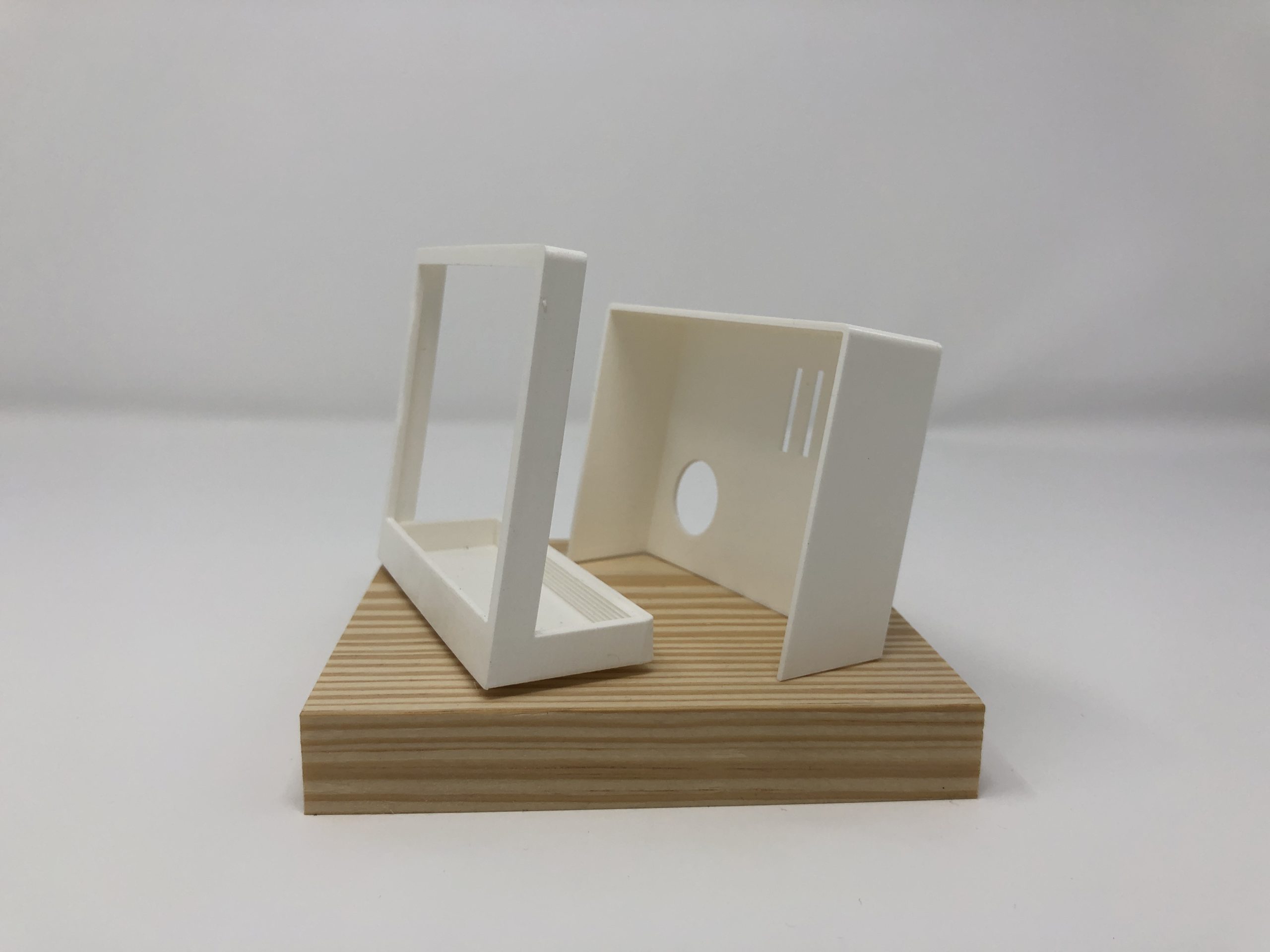

The post MQTT Frame – Beautifully Framed Live Data appeared first on Digital Urban.

A literary clock is a unique fusion of literature and timekeeping. Every minute of the day is represented by a corresponding quote from a literary work, providing not just the time, but a nugget of wisdom, humor, or beauty from the world of books. This idea transforms the mundane act of checking the time into a delightful literary experience. The initial concept, as outlined by the original Literary Clock Project, involves creating a clock that displays quotes from various literary works for every minute of the day. This concept not only appeals to book lovers but also serves as an artistic and educational piece, bringing literature into everyday life in a novel way. For example, as we type this the time is twenty one minutes to five and the quote from the database, including the book name is:

Crowdsourcing the Literary Database

An essential aspect of this project was the crowdsourcing of the literary database. The Literary Clock Project engaged a global community of literature enthusiasts to contribute quotes for every minute of the day. This collaborative effort created a diverse and rich collection of quotes, encompassing a wide range of genres, periods, and authors. Contributors from around the world submitted their favourite passages, transforming this project into a communal celebration of literature. The concept was taken a step further by tjaap who cleaned up the database and ported it onto a Kindle, complete with a full instructable on how to build you own.

Porting to MQTT

MQTT (Message Queuing Telemetry Transport) is a lightweight messaging protocol designed for small sensors and mobile devices optimized for high-latency or unreliable networks. It’s perfect for the Internet of Things (IoT) applications where bandwidth and battery power are at a premium. It is also good for transmitting short text messages to display across multiple devices at the same time, as long as a device is connected to an MQTT broker, it will automatically display messages as they arrive.

As such, as have created a Python script to read the database and publish the time quotes every minute to our MQTT broker on the following address: /personal/ucfnap/timequote (its a little but like tuning a radio, but in the case of MQTT, subscribing to topics).

How It Works:

1. Data Collection: We are using the extensive CSV file containing literary quotes provided by the Kindle Literarty Clock project, where each quote is tagged with a specific minute of the day. To make it work with our script we tidied things up a little.

2. Publishing: This CSV is processed and published via the MQTT feed. Each minute, a new message is sent out containing the current time and the corresponding quote.

3. Subscription: Any device can subscribe to this MQTT feed to receive the quotes in real-time. This could be an e-ink screen, a smart display, or even a mobile application – ie at 10.47 a device would receive the following message:

10.07 am: In a meeting with Rod, Momo and Guy. We are rehearsing the final for the third time, with Rod and Guy taking the parts of the clients, when Rod’s secretary, Lorraine, bursts in. Book: I Don’t Know How She Does It

Applications

E-Ink Screens

Perhaps one of the most elegant implementations of this concept is using e-ink screens. E-ink displays are known for their paper-like readability and low power consumption, making them perfect for a literary clock. For an example of this, you can check out our detailed guide on setting up an e-ink screen with MQTT via our previous project THE: Time Headlines and Environmental Information here.

Smart Displays and Mobile Apps

Beyond e-ink screens, this feed can be integrated into various smart displays and mobile applications. For example, we have intergrated it into our Home Assistant Dashboard, updating the time with a quote every minute. You could also add it to a HUB75 LED Matrix – below is our example of using an LED Matrix as a general data feed, but by simply changing the MQTT feed, it transforms into a Literary Clock.

Setting Up Your Literary Clock

Setting up your device is easy –

1. Choose Your Device: Select a device that can run an MQTT client. This could be an e-ink screen, a Raspberry Pi with a display, or a smartphone.

2. Install an MQTT Libary: There are numerous MQTT libraries available, we mainly use Paho.

3. Subscribe to the Feed: Point your client to the feed /personal/ucfnap/timequote

Configure your client to display the received messages. Our open MQTT Broker is mqtt.cetools.org on Port 1883

Of course you may not want to bother with Raspberry Pi’s or other about with MQTT, or hack a Kindle – in which case, for those looking for a ready-made commercial version, check out the Author Clock.

The Author Clock is a beautifully designed literary clock that comes pre-loaded with thousands of quotes from a wide array of literary works. It’s an excellent choice for those who want to enjoy the literary clock experience without the need for a DIY setup.

With our MQTT messages, any device can now be simply converted into a Literary Clock.

The post Turn Any Device into a Literary Clock with our MQTT Feed appeared first on Digital Urban.

Introduction

Viewing real-time data from a personal weather station such as a Davis Vantage Pro, a Tempest, or an EcoWhitt device can be complex. However, the majority of systems that process weather data, such as Weather Display, Weewx, or CumlusMx, all have the ability to output MQTT data. This data can be used to display a real-time graph of the data, keeping you engaged with the latest weather updates, and supplemented with any other data which is MQTT-based.

With this in mind, we’ve developed a live weather monitoring dashboard as an illustrative example. This dashboard uses MQTT for real-time data updates and Chart.js for dynamic visualization. We’ve also included a visual indicator for connection status and a brief pulse effect to notify when new data arrives, enhancing the user experience.

You can view it live at: https://finchamweather.co.uk/weathergraph.htm

The data populates as the page loads – we could of course back load it via a database link, but the aim was to simply use MQTT and have a graphing system that streams in data, its a work in progress but here is how we got it working:

Setting Up the Environment

Before we dive into the code, ensure you have the following libraries included in your HTML:

• Paho MQTT: for MQTT protocol handling – our MQTT feed is open to use as a test, replace this with your own MQTT details in the main code.
• Chart.js: for creating dynamic charts
• Chart.js adapter for date-fns: for handling time scales in charts

Initial HTML Setup

We’ll start by setting up the basic HTML structure. This includes elements for displaying the connection status, forecast, weather statistics, and the weather chart.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="apple-mobile-web-app-capable" content="yes">
    <meta name="apple-mobile-web-app-status-bar-style" content="black">
    <title>Live Weather Graph</title>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/paho-mqtt/1.0.1/mqttws31.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/chartjs-adapter-date-fns"></script>
    <style>
        body {
            font-family: Arial, sans-serif;
            margin: 20px;
        }
        #mqttStatus {
            margin-bottom: 20px;
            text-align: left;
            font-size: 1.2em;
        }
        .dot {
            height: 20px;
            width: 20px;
            border-radius: 50%;
            display: inline-block;
        }
        .green {
            background-color: green;
        }
        .red {
            background-color: red;
        }
        .orange {
            background-color: orange;
        }
        .pulse-once {
            animation: pulse-once 1s;
        }
        @keyframes pulse-once {
            0% { transform: scale(1); }
            50% { transform: scale(1.2); }
            100% { transform: scale(1); }
        }
        #forecast {
            margin-bottom: 20px;
            text-align: left;
            font-size: 1.2em;
            font-weight: bold;
        }
        #stats {
            display: flex;
            justify-content: center;
            gap: 20px;
            margin-bottom: 20px;
            font-size: 1.2em;
            font-weight: bold;
        }
        #stats div {
            padding: 10px 20px;
            border: 1px solid #ccc;
            border-radius: 8px;
            box-shadow: 2px 2px 12px #aaa;
            background-color: #f9f9f9;
        }
        canvas {
            border: 1px solid #ccc;
            box-shadow: 2px 2px 12px #aaa;
        }
    </style>
</head>
<body>
    <div id="mqttStatus"><span id="connectionDot" class="dot red"></span> mqtt: disconnected</div>
    <div id="forecast">Forecast: Loading...</div>
    <div id="stats">
        <div id="maxWindSpeed">Max Wind Speed: 0 mph</div>
        <div id="maxTemp">Max Temperature: 0 °C</div>
        <div id="minTemp">Min Temperature: 0 °C</div>
        <div id="maxPressure">Max Pressure: 0 mbar</div>
        <div id="minPressure">Min Pressure: 0 mbar</div>
    </div>
    <canvas id="weatherChart" width="800" height="400"></canvas>
</body>
</html>

Connecting to MQTT

Next, we set up the MQTT connection. The MQTT client will connect to the broker, subscribe to the necessary topics, and handle messages when they arrive.

// MQTT connection settings
var mqtt;
var reconnectTimeout = 2000;
var host = "mqtt.cetools.org";
var port = location.protocol === 'https:' ? 8081 : 8080;
var options = {
    timeout: 3,
    onSuccess: onConnect,
    onFailure: onFailure,
    useSSL: location.protocol === 'https:',
};
var clientID = "clientID" + parseInt(Math.random() * 100);

function updateConnectionStatus(status) {
    const dot = document.getElementById("connectionDot");
    if (status === "connected") {
        dot.className = "dot green";
        document.getElementById("mqttStatus").innerHTML = `<span class="dot green" id="connectionDot"></span> mqtt: connected`;
    } else if (status === "disconnected") {
        dot.className = "dot red";
        document.getElementById("mqttStatus").innerHTML = `<span class="dot red" id="connectionDot"></span> mqtt: disconnected`;
    } else if (status === "reconnecting") {
        dot.className = "dot orange";
        document.getElementById("mqttStatus").innerHTML = `<span class="dot orange" id="connectionDot"></span> mqtt: reconnecting`;
    }
}

function pulseDot() {
    const dot = document.getElementById("connectionDot");
    dot.classList.add("pulse-once");
    setTimeout(() => {
        dot.classList.remove("pulse-once");
    }, 1000); // Duration of the pulse-once animation
}

function onFailure(message) {
    console.log("Connection Attempt to Host " + host + " Failed: ", message.errorMessage);
    updateConnectionStatus("disconnected");
    setTimeout(MQTTconnect, reconnectTimeout);
}

function onConnect() {
    console.log("Connected ");
    updateConnectionStatus("connected");
    mqtt.subscribe("personal/ucfnaps/downhamweather/loop");
    mqtt.subscribe("personal/ucfnaps/eink/met");
}

function MQTTconnect() {
    console.log("Connecting to " + host + " on port " + port);
    updateConnectionStatus("reconnecting");
    mqtt = new Paho.MQTT.Client(host, port, clientID);
    mqtt.onMessageArrived = onMessageArrived;
    mqtt.onConnectionLost = function(responseObject) {
        if (responseObject.errorCode !== 0) {
            console.log("Connection Lost: " + responseObject.errorMessage);
            updateConnectionStatus("disconnected");
            setTimeout(MQTTconnect, reconnectTimeout);  // Attempt to reconnect
        }
    };
    mqtt.connect(options);
}

window.onload = function() {
    MQTTconnect();
}

Handling Incoming Messages

When messages arrive, we process the data and update the chart. We also update the connection dot to pulse briefly, indicating new data has been received.

let lastUpdate = Date.now();  // Initialize to current time
let firstUpdate = true;  // Flag to ensure first update happens immediately

let maxWindSpeed = 0;
let maxTemp = -Infinity;
let minTemp = Infinity;
let maxPressure = -Infinity;
let minPressure = Infinity;

function updateWindSpeed(windSpeed, timestamp) {
    weatherChart.data .labels.push(timestamp);
    weatherChart.data.datasets[0].data.push(windSpeed);

    // Update max wind speed
    if (windSpeed > maxWindSpeed) {
        maxWindSpeed = windSpeed;
        document.getElementById('maxWindSpeed').innerText = `Max Wind Speed: ${maxWindSpeed} mph`;
    }

    // Limit the number of data points to keep the chart responsive
    if (weatherChart.data.labels.length > 1440) { // Assuming 1 data point per minute, keep 24 hours of data
        weatherChart.data.labels.shift();
        weatherChart.data.datasets[0].data.shift();
    }

    weatherChart.update();
}

function updateOtherMetrics(temperature, solarRadiation, rainAmount, pressure, timestamp) {
    weatherChart.data.datasets[1].data.push({x: timestamp, y: temperature});
    weatherChart.data.datasets[2].data.push({x: timestamp, y: solarRadiation});
    weatherChart.data.datasets[3].data.push({x: timestamp, y: rainAmount > 0 ? rainAmount : null});
    weatherChart.data.datasets[4].data.push({x: timestamp, y: pressure});

    // Update max and min temperature
    if (temperature > maxTemp) {
        maxTemp = temperature;
        document.getElementById('maxTemp').innerText = `Max Temperature: ${maxTemp} °C`;
    }
    if (temperature < minTemp) { minTemp = temperature; document.getElementById('minTemp').innerText = `Min Temperature: ${minTemp} °C`; } // Update max and min pressure if (pressure > maxPressure) {
        maxPressure = pressure;
        document.getElementById('maxPressure').innerText = `Max Pressure: ${maxPressure} mbar`;
    }
    if (pressure < minPressure) { minPressure = pressure; document.getElementById('minPressure').innerText = `Min Pressure: ${minPressure} mbar`; } // Limit the number of data points to keep the chart responsive if (weatherChart.data.labels.length > 1440) { // Assuming 1 data point per minute, keep 24 hours of data
        weatherChart.data.datasets[1].data.shift();
        weatherChart.data.datasets[2].data.shift();
        weatherChart.data.datasets[3].data.shift();
        weatherChart.data.datasets[4].data.shift();
    }

    weatherChart.update();
}

function updateForecast(forecast) {
    document.getElementById('forecast').innerText = `Forecast: ${forecast}`;
}

function onMessageArrived(message) {
    console.log("Message Arrived: " + message.destinationName + " : " + message.payloadString);
    if (message.destinationName === "personal/ucfnaps/downhamweather/loop") {
        const data = JSON.parse(message.payloadString);
        const windSpeed = data['windSpeed_mph'];  // Adjust this key according to your data structure
        const temperature = data['outTemp_C'];  // Adjust this key according to your data structure
        const solarRadiation = data['radiation_Wpm2'];  // Adjust this key according to your data structure
        const rainAmount = data['dayRain_mm'];  // Adjust this key according to your data structure
        const pressure = data['pressure_mbar'];  // Adjust this key according to your data structure

        const nowTimestamp = new Date();

        // Update wind speed every time
        updateWindSpeed(windSpeed, nowTimestamp);

        if (firstUpdate || Date.now() - lastUpdate >= 60000) {
            // Update other metrics every minute
            updateOtherMetrics(temperature, solarRadiation, rainAmount, pressure, nowTimestamp);
            lastUpdate = Date.now();
            firstUpdate = false;  // Ensure subsequent updates follow the interval
        }

        // Pulse the dot when new data arrives
        pulseDot();
    } else if (message.destinationName === "personal/ucfnaps/eink/met") {
        const forecast = message.payloadString;
        updateForecast(forecast);
    }
}

Chart.js Setup

Now, let’s configure Chart.js to visualize the weather data. We will use multiple datasets to display wind speed, temperature, solar radiation, rain amount, and pressure.

// Chart.js setup
const ctx = document.getElementById('weatherChart').getContext('2d');
const weatherChart = new Chart(ctx, {
    type: 'line',
    data: {
        labels: [],  // Time labels
        datasets: [{
            label: 'Wind Speed (mph)',
            data: [],
            borderColor: 'rgba(75, 192, 192, 1)',
            borderWidth: 3,
            fill: false,
            yAxisID: 'y-axis-1',
            tension: 0.1
        },
        {
            label: 'Temperature (°C)',
            data: [],
            borderColor: 'rgba(255, 99, 132, 1)',
            borderWidth: 3,
            fill: false,
            yAxisID: 'y-axis-2',
            tension: 0.1
        },
        {
            label: 'Solar Radiation (W/m²)',
            data: [],
            borderColor: 'rgba(255, 206, 86, 1)',
            borderWidth: 3,
            fill: false,
            yAxisID: 'y-axis-3',
            tension: 0.1
        },
        {
            label: 'Rain Amount (mm)',
            data: [],
            borderColor: 'rgba(54, 162, 235, 1)',
            borderWidth: 3,
            fill: false,
            yAxisID: 'y-axis-4',
            tension: 0.1
        },
        {
            label: 'Pressure (mbar)',
            data: [],
            borderColor: 'rgba(153, 102, 255, 1)',
            borderWidth: 3,
            fill: false,
            yAxisID: 'y-axis-5',
            tension: 0.1
        }]
    },
    options: {
        responsive: true,
        plugins: {
            legend: {
                position: 'top',
            },
            title: {
                display: true,
                text: 'Live Weather Data'
            },
            decimation: {
                enabled: true,
                algorithm: 'lttb',
                samples: 100,  // Adjust this value as needed for performance
            },
        },
        scales: {
            x: {
                type: 'time',
                time: {
                    unit: 'minute'
                },
                title: {
                    display: true,
                    text: 'Time'
                }
            },
            'y-axis-1': {
                type: 'linear',
                position: 'left',
                beginAtZero: true,
                title: {
                    display: true,
                    text: 'Wind Speed (mph)'
                }
            },
            'y-axis-2': {
                type: 'linear',
                position: 'right',
                beginAtZero: true,
                title: {
                    display: true,
                    text: 'Temperature (°C)'
                },
                grid: {
                    drawOnChartArea: false
                }
            },
            'y-axis-3': {
                type: 'linear',
                position: 'right',
                beginAtZero: true,
                title: {
                    display: true,
                    text: 'Solar Radiation (W/m²)'
                },
                grid: {
                    drawOnChartArea: false
                }
            },
            'y-axis-4': {
                type: 'linear',
                position: 'right',
                beginAtZero: true,
                title: {
                    display: true,
                    text: 'Rain Amount (mm)'
                },
                grid: {
                    drawOnChartArea: false
                }
            },
            'y-axis-5': {
                type: 'linear',
                position: 'right',
                beginAtZero: true,
                title: {
                    display: true,
                    text: 'Pressure (mbar)'
                },
                grid: {
                    drawOnChartArea: false
                }
            }
        },
        interaction: {
            intersect: false,
            mode: 'nearest',
        },
        elements: {
            line: {
                cubicInterpolationMode: 'monotone',
            },
        },
    }
});

Conclusion

By integrating MQTT and Chart.js, it is possible to create a dynamic and real-time weather monitoring dashboard. The connection status indicator provides immediate feedback on the connection state, and the pulsing effect when new data arrives enhances user experience by visually notifying them of updates.

This setup can be further extended by adding more datasets, customizing the chart’s appearance, or integrating additional sensors. The data of course couple be from any feed, but real-time weather monitoring provides a good example of how IoT and web technologies can be combined to create realtime dashboards.

The post Enhancing Live Weather Monitoring with MQTT and Chart.js appeared first on Digital Urban.

To Make a THE you require:

1. A Raspberry Pi (a Pi zero, or a Pi 3 ) – we used a Pi 3 for ours.
2. An InkywHAT screen;
3. If using a Pi 3 – a right angled USB cable (so the cable fits in the case);
4. An MQTT broker – either running on your Pi or elsewhere. Don’t worry if you do not have one or are not sure what MQTT is, its quick and easy to set up and once installed it will automatically run – take a look at https://randomnerdtutorials.com/how-to-install-mosquitto-broker-on-raspberry-pi/ for a full and easy to follow tutorial on getting MQTT running – in this case mosquitto on your Pi.
5. An easy to fit case – head over to Thingiverse to download and print our open source case.
6. Our free and open source scripts to collect the Time, News and Environment conditions.

curl https://get.pimoroni.com/inky | bash

Step Three – THE
Once you have the scripts to collect the feeds you needs to install the main script to run THE.
Download THE_pi_what.py
As with the other scripts, edit where indicated and add in your own MQTT details. Once edited, copy it across to your Pi with your other scripts.
Finally you need the font and the background image:
Download hm.ttf (the font)
Download whatbackground.png
These go in a new folder called ‘resources’ inside the scripts folder you crearted on your pi – simply create the new folder and copy the files across.

sudo crontab -e

*/5 * * * * python3 /home/pi/scripts/timetomqtt.py
*/12 * * * * python3 /home/pi/scripts/rsstomqtt.py
*/18 * * * * python3 /home/pi/scripts/darkskytomqtt.py
@reboot sleep 10 && python3 /home/pi/scripts/THE_pi_what.py
*/60 * * * * sudo reboot

The post Make an eInk MQTT Reader for the Time, News and Environmental Data appeared first on Digital Urban.
