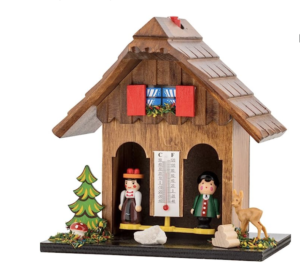

Traditional German weather houses are small, decorative structures that are popular in Germany and other parts of Europe. They are often made from wood and used to predict the weather.

The way the weather house works is quite simple. Inside the house, there is a strip of catgut or hair. The gut relaxes or shrinks based on the humidity in the surrounding air, relaxing when the air is wet and tensing when the air is dry. Attached to the strip is a small figure of a man and a woman. When the humidity in the air changes, the strip will expand or contract, causing the figures to move.

If the weather is going to be dry and sunny, the man will come out of the house. If it is going to be wet and rainy, the woman will come out of the house. If the humidity is just right, both the man and the woman will be visible.

Traditional German weather houses are, an interesting, if slightly imprecise way to predict the weather. They are also a useful inspiration to develop a slightly more modern version using the Open Weather Map API, a 360-degree non-continuous servo, some neopixels and a Raspberry Pi Pico W.

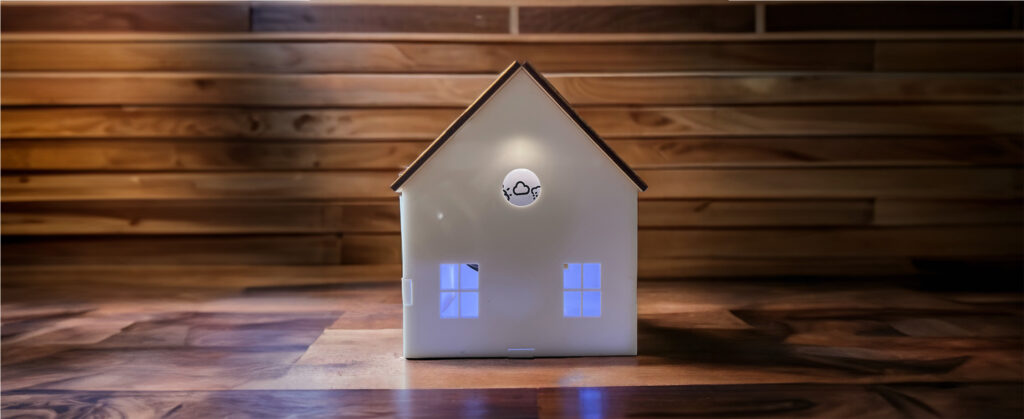

Weather House Laser Cut
The Weather House Reimagined

In essence the house is a series of weather symbols which rotate according to the feed from the Open Weather Map API. This can be set to any location in the world and it updates every 15 minutes. It is also adaptable to change to your own source of weather data, perhaps your own personal weather station.

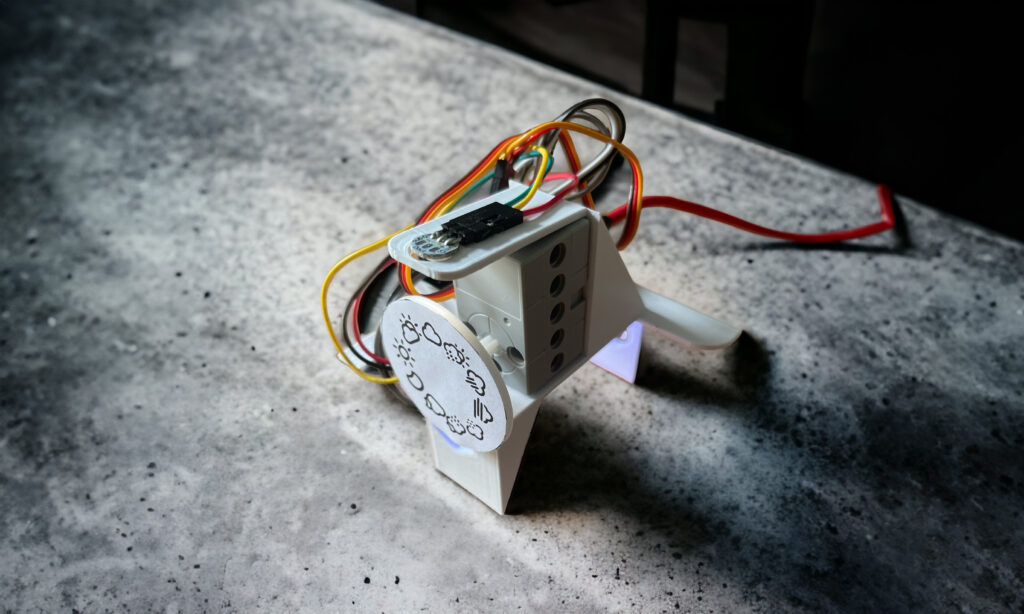

Weather House Components
Weather House Components

There are also two sets of neopixels – one to light up the symbol, this works well at night and looks like an outside light on the house, allowing the weather conditions to be seen. The other is an 8 pixel neopixel strip which changes colour and animates according to the conditions. If it’s raining then the lights change to blue and simulate raindrops, for sunny spells they light and dim with tinges of yellow to simulate the sun poking out of the clouds, etc. All of these are editable in the code to change according to your own preference.

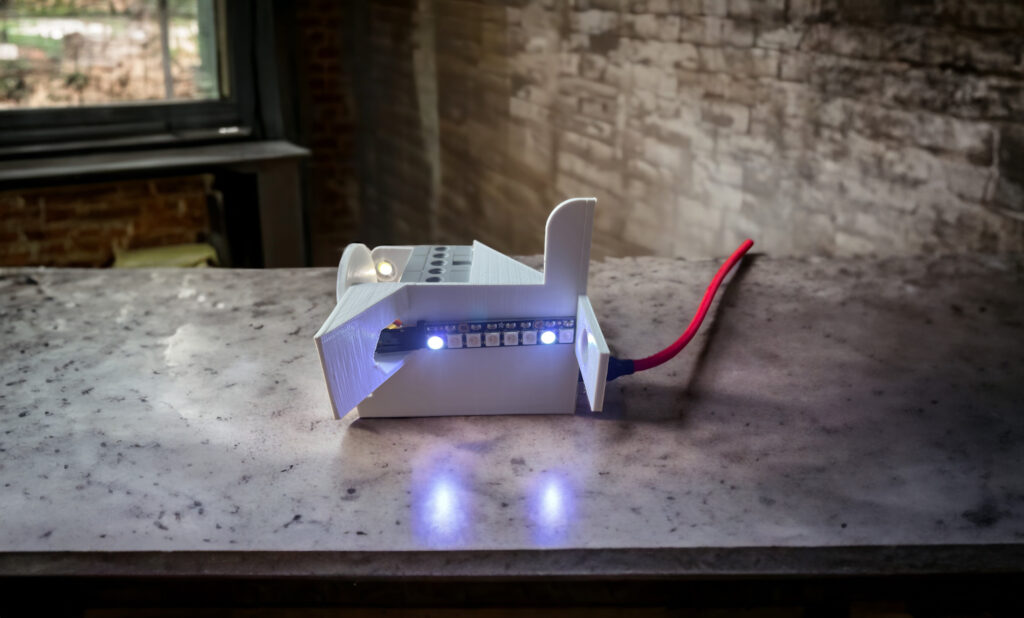

Weather House Neopixels
Weather House Neopixels

At the heart of the weather house is a Raspberry Pi Pico W, held in a 3D printed enclosure which also encases the LEDs and the Servo.

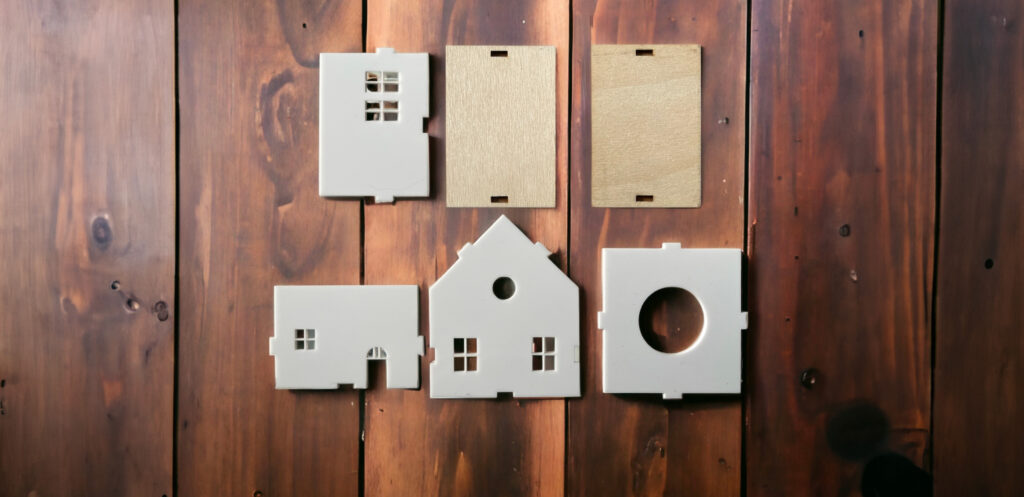

Weather House Laser Cut Outs

It slots into the case which, in our example, is laser cut from white perspex for the house and 3mm plywood for the roof.


Weather House Laser Cut Outs
Weather House Laser Cut Outs

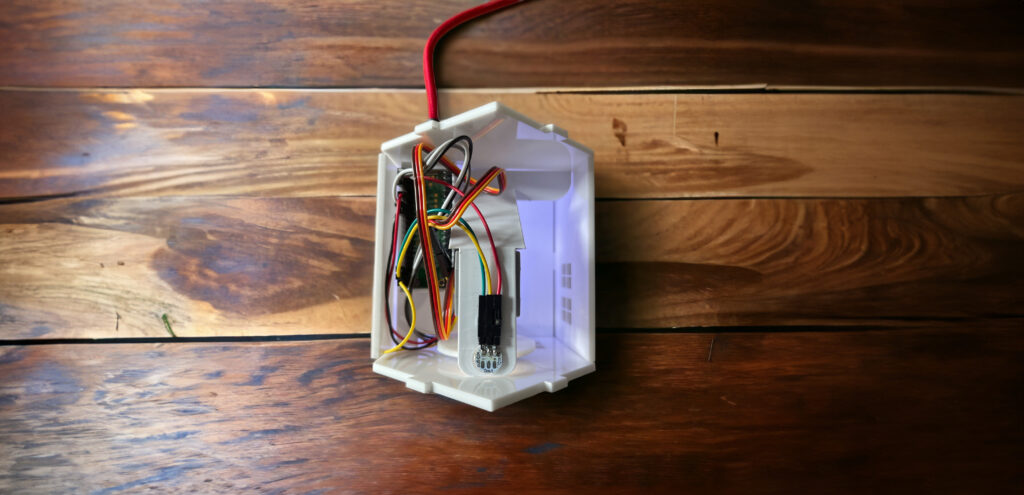

Once assembled the 3D printed enclosure along with the dial, fits into the main house. The servo is set to its starting point with the ‘Sun’ icon showing through the window.

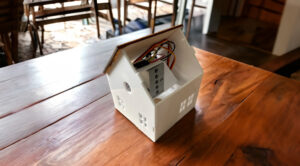

Weather House Inside View

Weather House Inside View

We power ours from a 20,000mAh power bank which keeps it running for about a week. Each time the data updates the outside lamp turns on and off, so you have a visual clue that new data has uploaded.

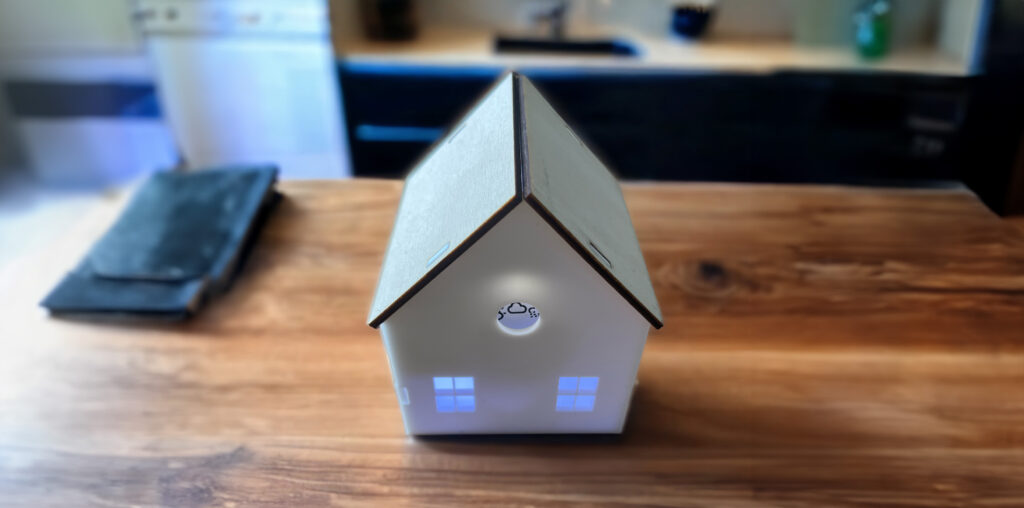

Weather House Looking Down
The Final Built Weather House

The Micropython code, build components, 3D print and laser cut files are available on our accompanying GitHub page, note the project is still a work in progress..
